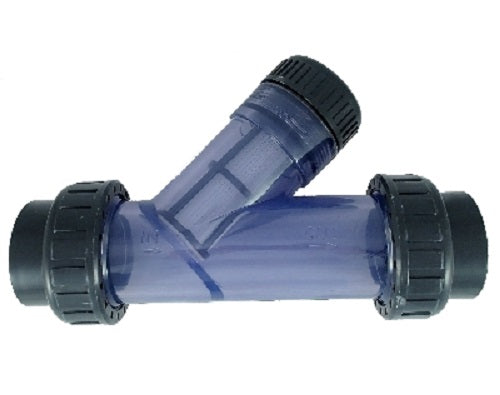

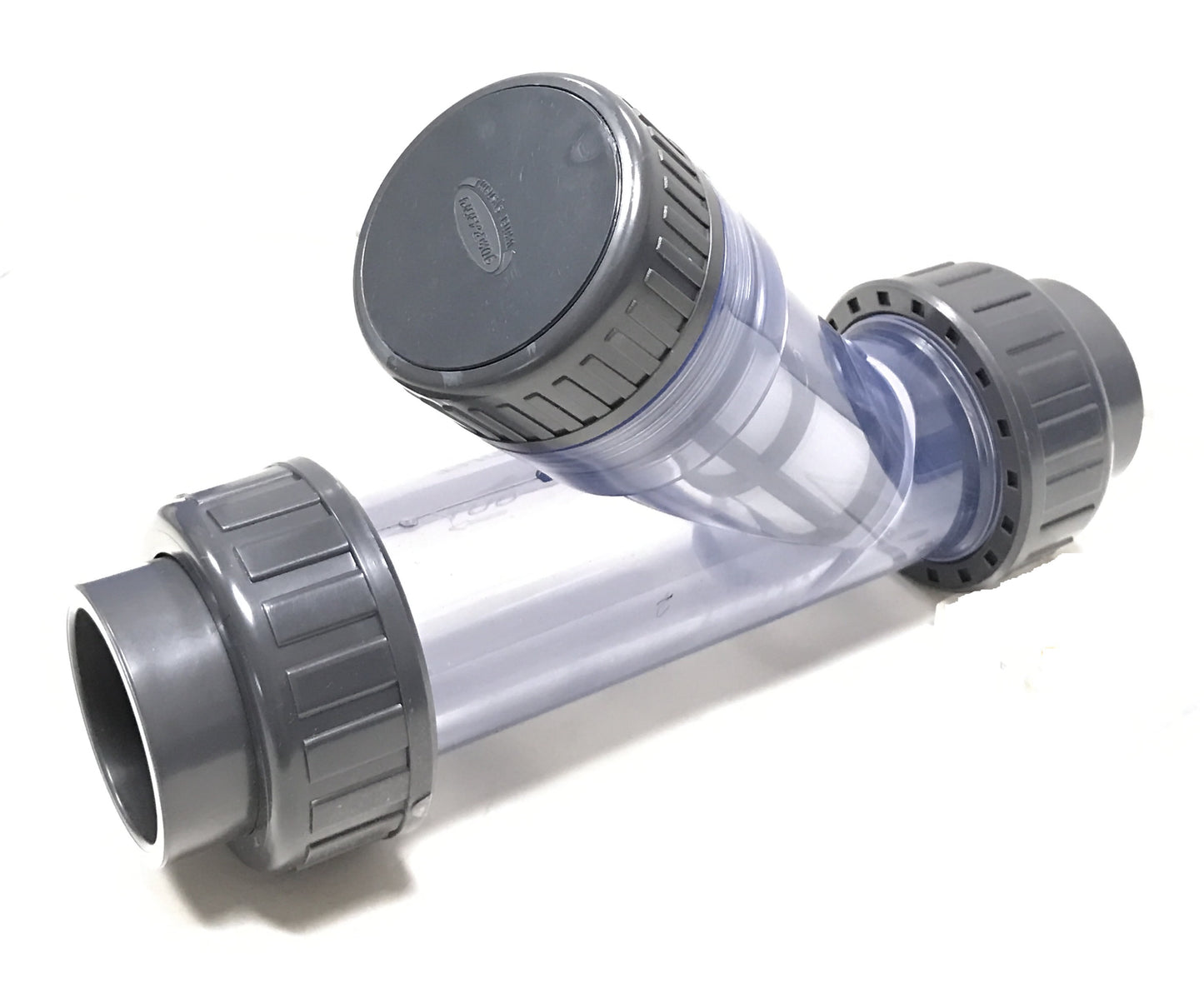

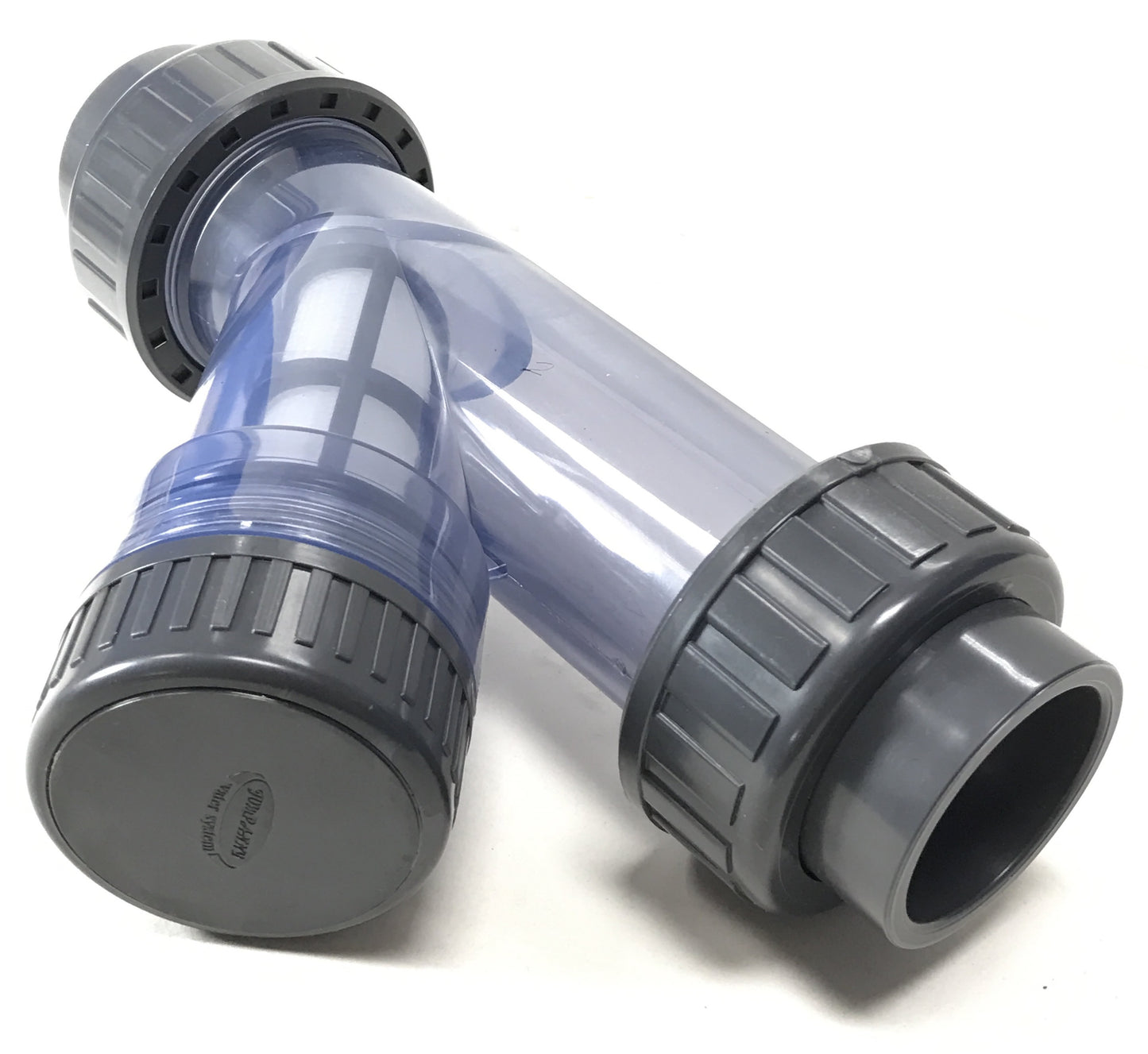

Clear PVC Y Strainer/Filter
The Y-Strainer allows you to filter out unwanted contaminants in your water or other liquid while allowing you to visually inspect not only the liquid but also the mesh filter to see when it needs to be cleaned. When it does need cleaning, simply shut off the pressure of the water or other liquid and unscrew the mesh filter. Clean the mesh filter with a wire brush and running water, and reinsert.

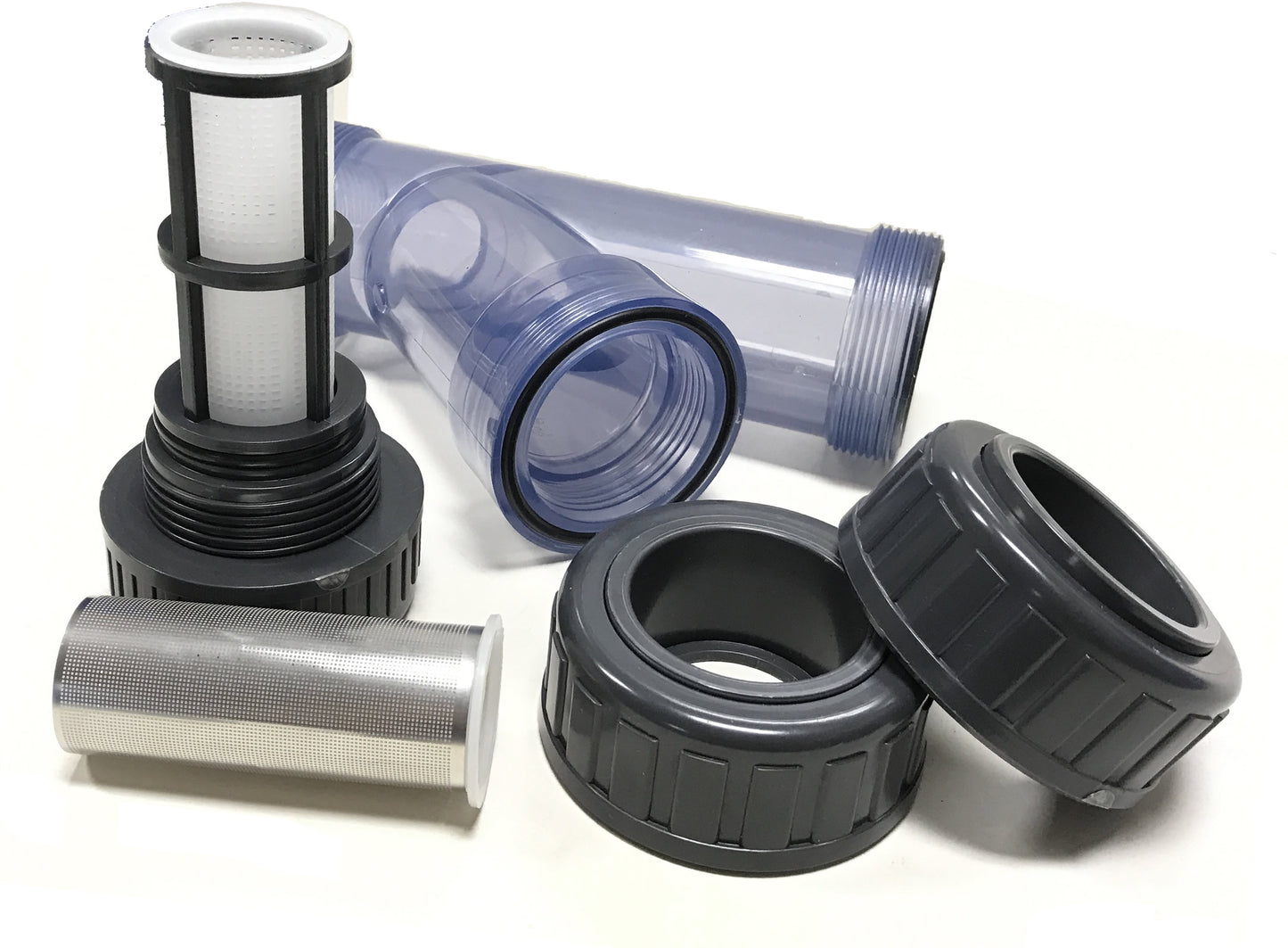

The joint ends are just standard PVC Slick ends that are glued into place with PVC Cement. The joints have unions built in for easy removal from the system if needed.
Y-Strainers always come with plastic mesh filters. Metal filters can be ordered separately. Be sure to order the Y-Strainer to go with your metal filter.
IMPORTANT: Be sure to clean the filter regularly. A filter which is too clogged will increase the internal water pressure and can break the unit, allowing the water or other liquid to escape. Install where potential flooding wouldn't be a problem.
Working pressure:
1/2" to 2" 150 PSI@70F, 2 1/2" to 4" 90 PSI@70F
Maximum liquid temperature:
131F / 55C
PP Screen Specification for the included plastic mesh filter:
1/2" to 2" 20 mesh / 841 microns
2 1/2" to 4" 10 mesh / 2000 microns

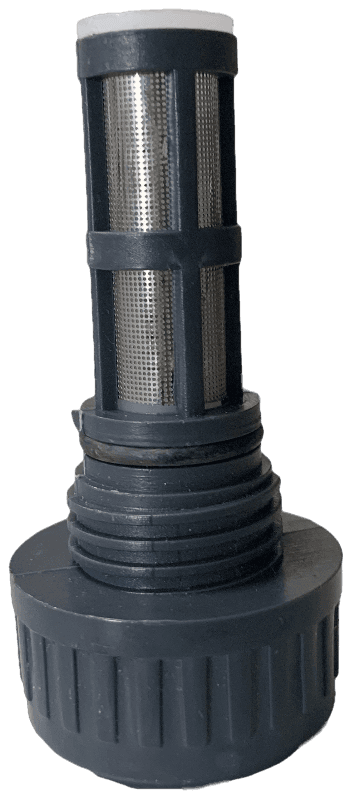

For the optional metal mesh filter upgrade, the SUS+PP Screen mesh filter is 40 mesh / 420 microns for all diameters.
Features:
- Horizontal or Vertical Installation
-
P.P. Strainer Screens
- True Union Connections
Common Applications:
- Water & Wastewater Treatment
- Chemical Processing
- Food & Beverage
- Swimming Pools & Water Parks
- Aquaculture
- Aquarium & Zoo Services
- Pharmaceutical
- Pulp & Paper
- Landfill Service
- Marine & Corrosive Environments
- Metal Finishing & Plating
Y-Strainers should be protected from sunlight as prolonged exposure to UV will cause discoloration.
